THE DRONE AS ACCESS SOLUTION

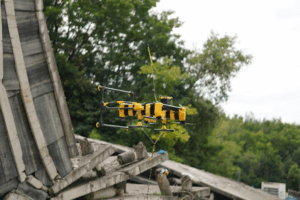

Aithon enables safe, efficient work at height by combining drone mobility with human capability. By perching, inspection, testing, and repair become possible without endangering human workers.

How?Use CasesTech Details

“What can our drone do?”

Our solution is as ingenious as it is straightforward – Let’s show you what it is capable of.

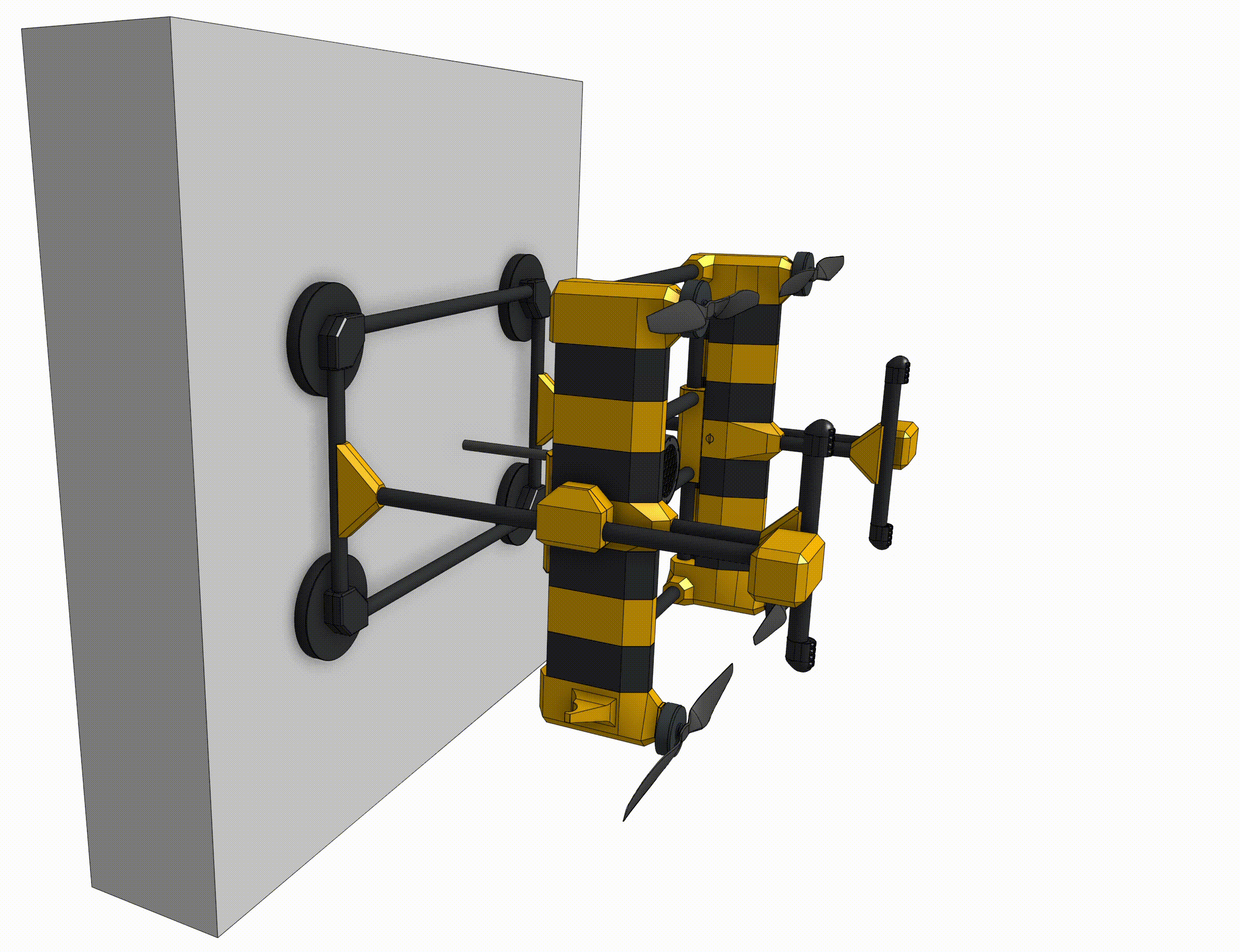

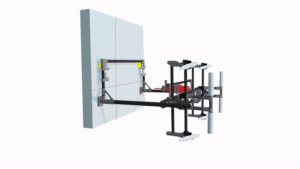

Forceful work and steady performance.

By attaching directly to the asset, we decouple flight from interaction. This enables precise, high-force tasks with up to 500 N of force and no flight disturbance.

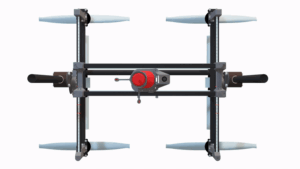

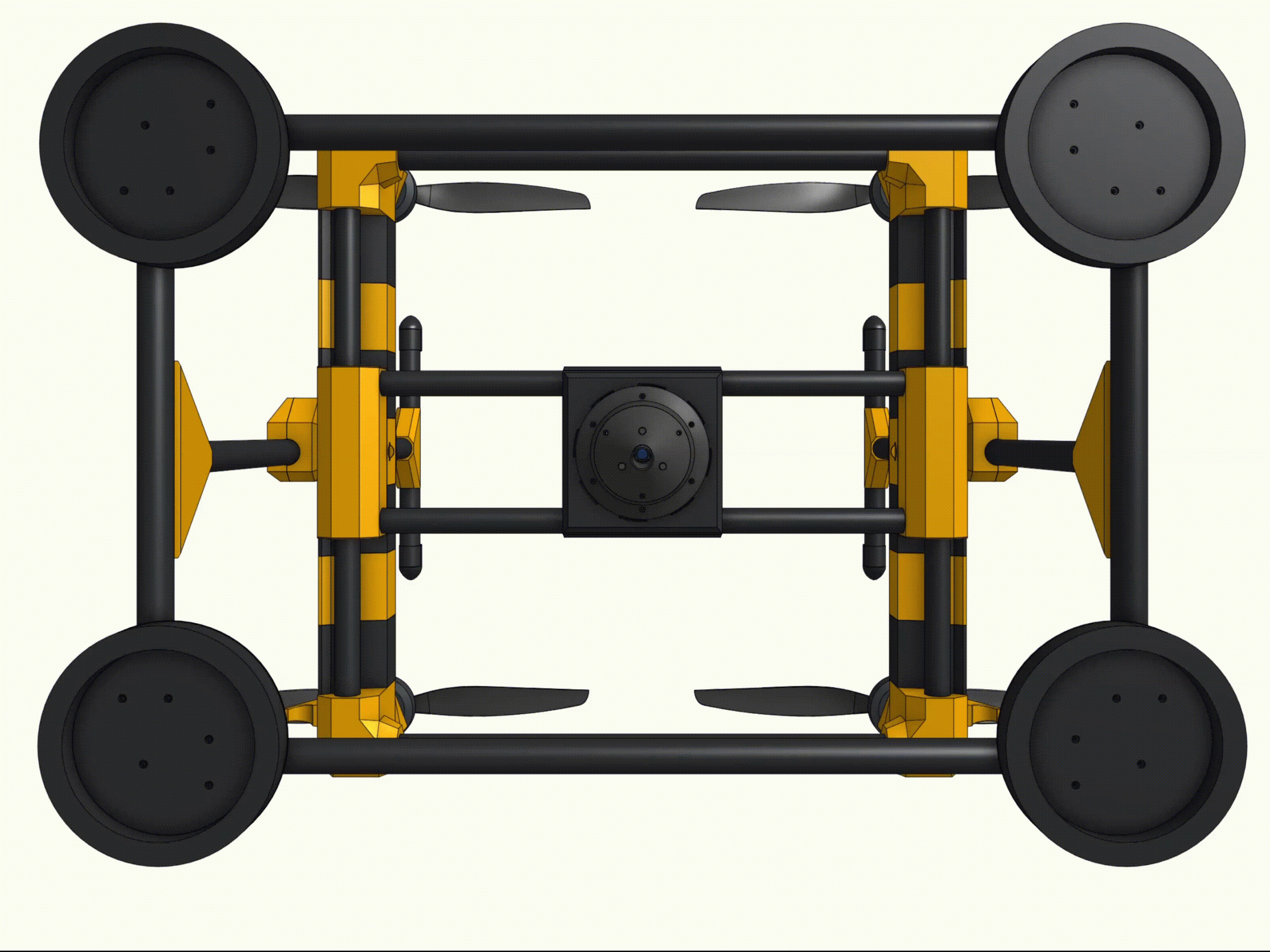

1 mm precision on a 40x40cm tool table.

Our tool gantry compensates for drone drift and expands task coverage from single points to larger surfaces.

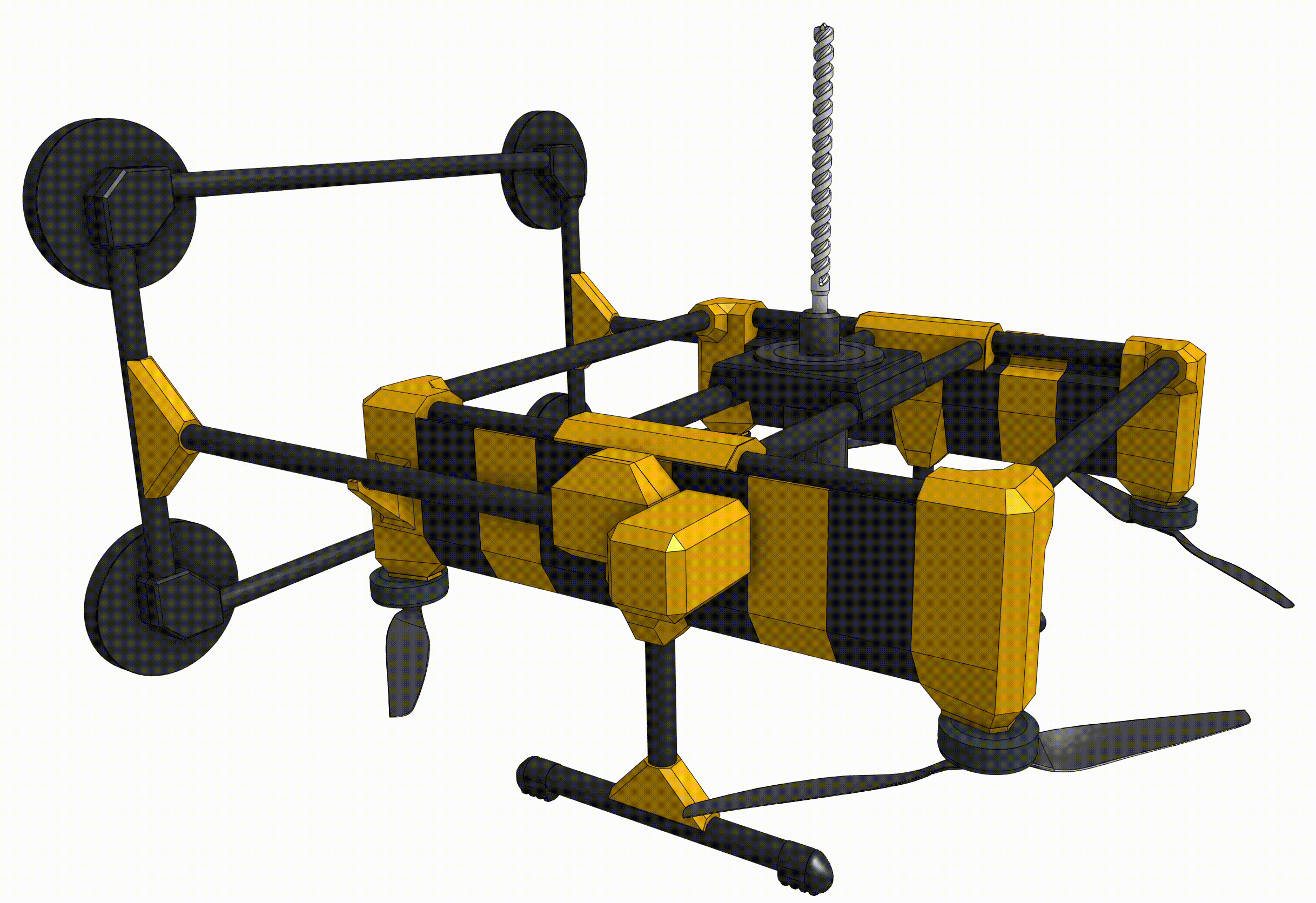

One platform, endless tools.

Our modular payload system handles most handheld tools up to 5 kg, from drills to sensors, ready for any infrastructure job.

Tethered for nonstop missions.

With constant power from a tether, AITHON operates energy-hungry tools continuously: no battery swaps, no downtime.

AITHON is an access solution for the built environment like no other. We’re always working on new applications, get in touch if you have something you can’t find below.

Use Cases

Non-destructive Evaluation

Details

Sensor Installation

Details

Core Sampling

Details

Frequenty Asked Questions

Our solution allows you to get better data on your asset at the right time. Instead of going on instinct and experiences from other assets, we can provide you with high-quality insights. This makes planning easier, keeps initial inspection costs low and prevents expensive errors down the line.

Every asset is different – get in touch to discuss how Aithon Robotics can help you!

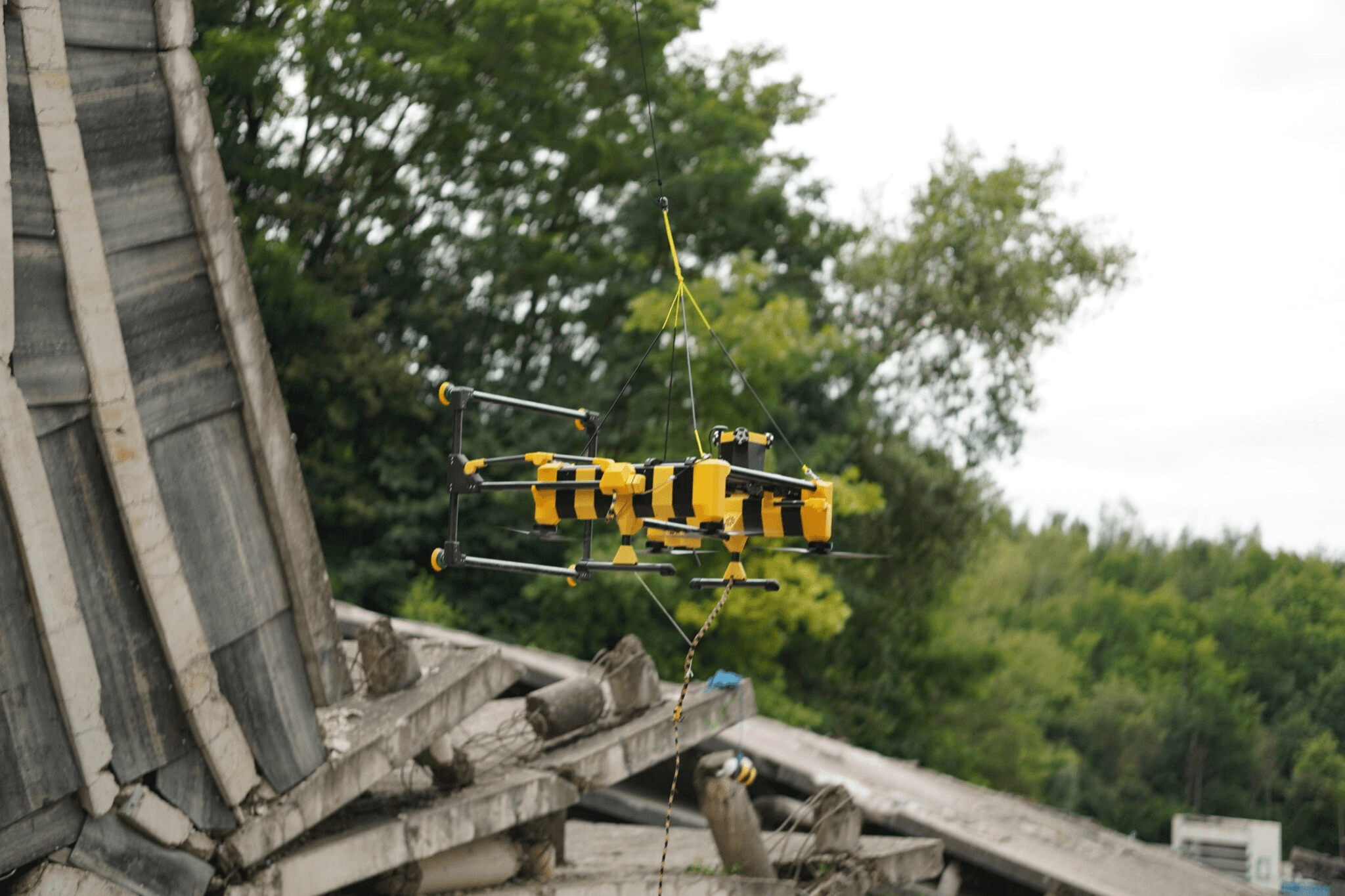

For man-made surfaces, the attachment is robust and reliable. We have tested and deployed on concrete with various degrees of deterioration, including cracks, dirt, and wet surfaces.

Get in touch to learn if Aithon Robotics works for you!

For non-destructive testing:

Ground-penetrating Radar
Rebar Localization and Marking
Corrosion Testing
Schmidt Hammer
For destructive testing:

Core Sampling (up to 80mm diameter)
Concrete Dust
Do you have other inspection tools? Let us know to discuss how we can get the best data in the best way!



Our solution allows for rapid sensor placement and movement. Without having to set up scaffolding, you can get insights into accelerations, strains and displacements.

We’re happy to accomodate your specific needs – get in touch now!



We don’t stop until the work is done – by operating as a tethered drone, mission durations are not limited.

No – our team operates the drone according to your needs and requirements so that you can focus on what you do best: keeping assets safe!



Technical Specs at a Glance

Max Payload: 5 kg
Force Capability: Up to 500 N
Tool Accuracy: Millimeter level within 40×40 cm work area
Flight Height: Up to 12 m (100 m in next generation)

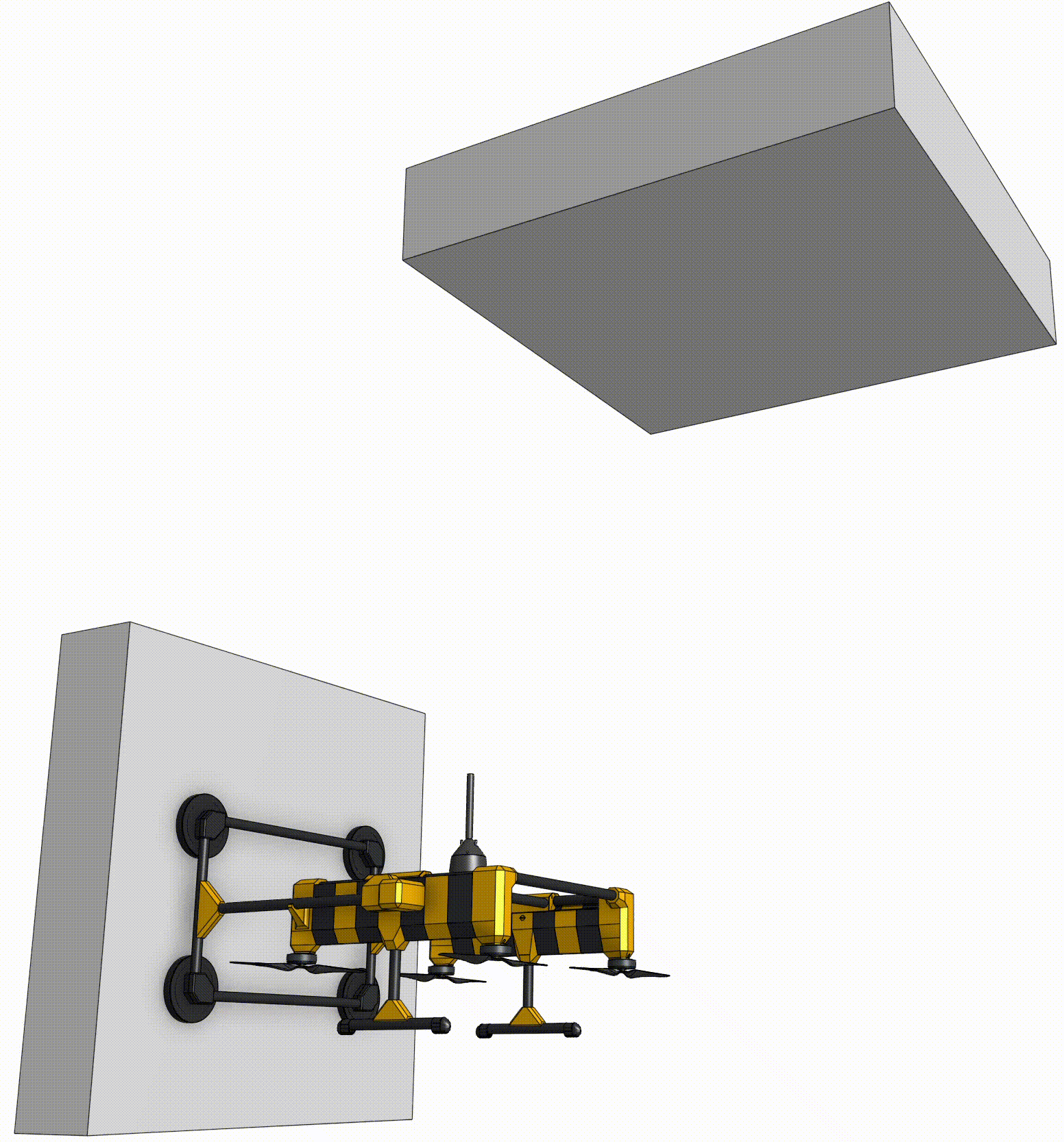

Attachment Method: High-flow suction for wall, ceiling, or angled surfaces
Power: Tethered
UAV Weight: Approx. 16 kg = 8kg UAV + 2.5 kg attachment + 5kg Payload
Footprint: 1m^2 Take off Size
UAV Category: A3 Category (under EASA Drone Regulations)
